TP-120 jungtis 4pin Peltor, Nexus

  • Kraunamos nuotraukos
    Kodas: 4541
    19
    Laikinai neturime
    Užsakyti

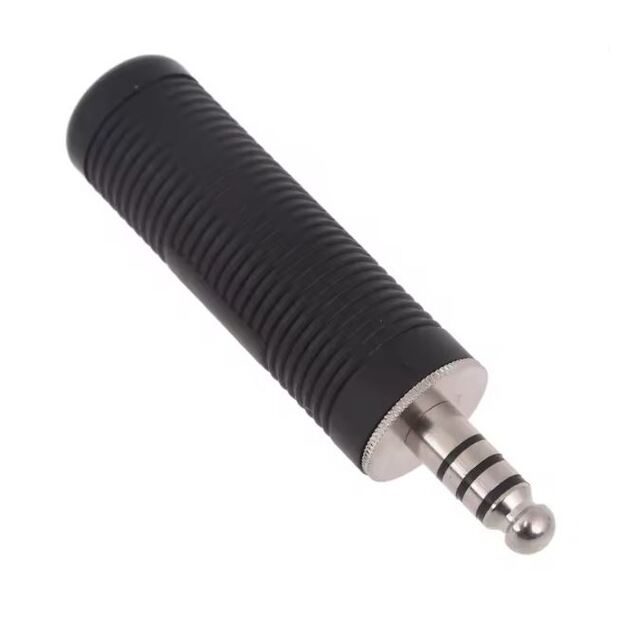

    TP-120 jungtis 4pin Peltor, Nexus

  • Ausinių adapteris TP-120, U-174U jungtis 4pin Peltor, Nexus.


    Specifications


    Application Ruggedized Commercial / Military

    Conductors 4

    Overall Diameter 0.500 in

    Overall Length 1.906 in

    Contact Diameter 0.281 in

    Contact Length 0.761 in

    Shell Material Plastic

    Contact Material Nickel Plated Brass

    Body Material Plastic

    Solder Contact Terminals Pre-tinned over Nickel Plating

    Contact Resistance ≤ 0.02 OM

    Insulation Resistance ≥ 1,000 mOM

    Dielectric Withstanding Voltage (RMS) ≥ 500 V

    Insertion Force Maximum 13 lb

    Withdrawal Force 6 to 10 lb
